HI-TARGET HTS-220R

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS-220/R is turned on. The azimuth information won’t be missed even the HTS-220/R is power-off unexpectedly.

Dual-axis Compensation

The HTS-220/R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation.

High-performance MCU

The STM32 MCU based on ARM Cortex™-M processor enables the HTS-220/R has extra high processing speed and low-power consumption.

Bluetooth

The Bluetooth wireless technology makes HTS-220/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-220/R.

Data Storage

Diversified data transfer options such as SD card, USB pen drive, mini-B interface.

Backlight

The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece

Support diagonal eyepiece for observations at steep line of sight.

Calibration Software

The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software

The proprietary HI-TARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’ post processing software.

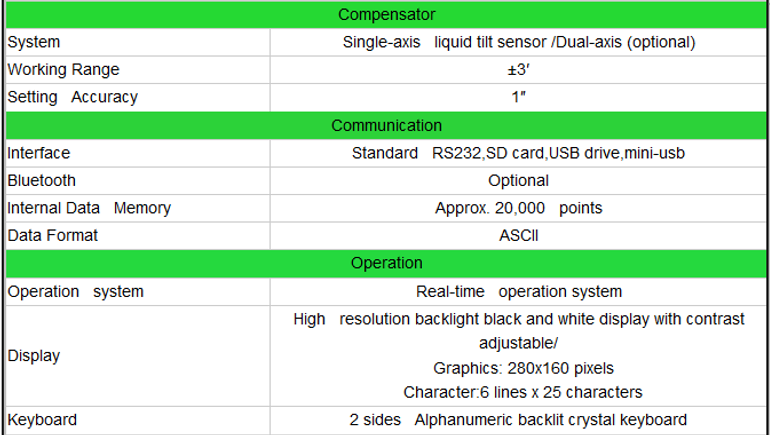

HTS-220R total station key features:
